Roller Shades
Lutron roller shades create the perfect light for any space or activity with an offering of sheer, dim-out, and blackout fabrics. Choose a sheer to maintain view while diffusing UV rays that may damage furnishings. Dim-out fabrics provide privacy while blackout fabrics are 100% opaque to eliminate all daylight.
Lutron also offers Tensioned Shades for skylight, angled, and bottom-up applications, as well as Cable Guided Shades for angled windows up to 20o and areas of high velocity airflow.

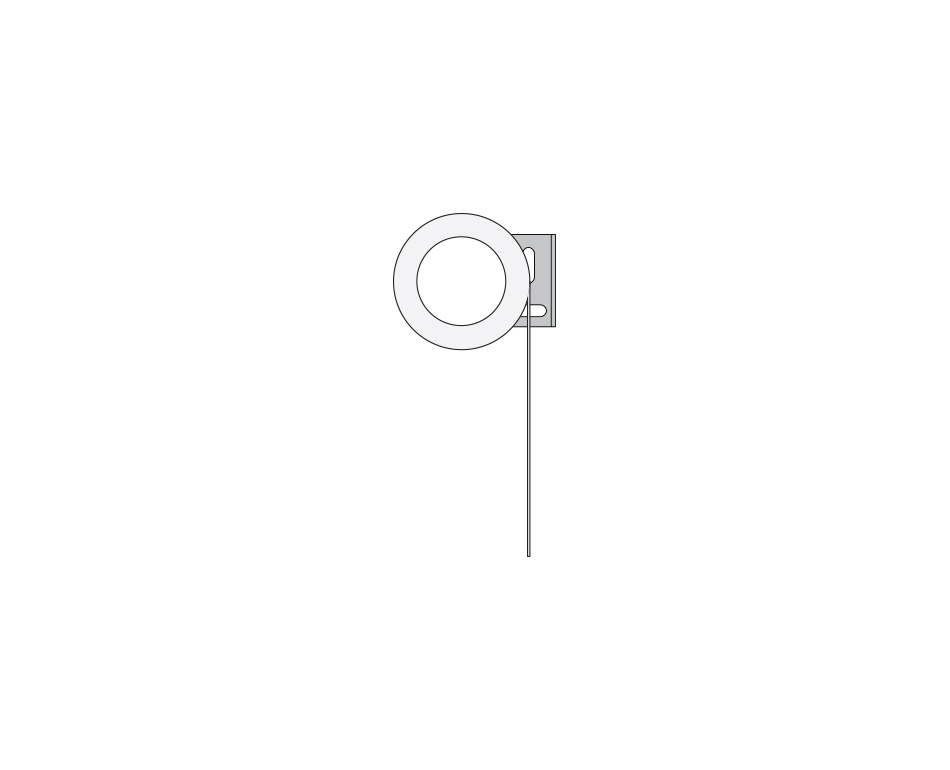

roller 20
roller 20 is the smallest addition to the roller shade product line, measuring only 1.25 inches in diameter and 18.5 inches in length. The roller 20 ultra-slim profile offers the ideal solution for inside mounting within most residential window frames.
Pocket size: 3.5 in. w x 3.5 in. h
Typical maximum size of fabric*: 20 ft2
Universal, one-piece bracket for ceiling, wall, and jamb mount
Minimum bracket-to-bracket width: 18.5 in.
Maximum bracket-to-bracket width*: 8 ft.
Operates at less than 44 dBA at 3ft.

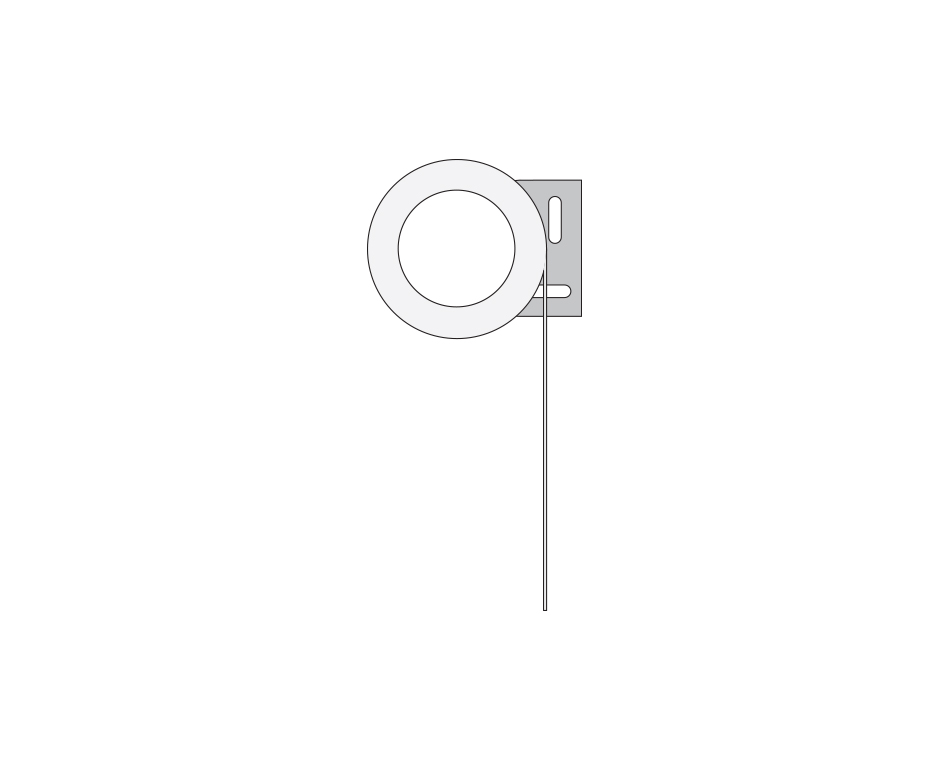

roller 64
roller 64 can operate up to 64 ft2 of fabric.
Pocket size: 3.5 in. w x 3.5 in. h
Typical maximum size of fabric*: 64 ft2
Universal, one-piece bracket for ceiling, wall, and jamb mount
Minimum bracket-to-bracket width: 17.5 in.
Maximum bracket-to-bracket width*: 8 ft.
Operates at less than 35 dBA at 3ft.


roller 64 WIDR
Tube size: 2 in. diameter
Pocket size: 4 in. w x 4 in. h
Universal, one-piece bracket for ceiling, wall, and jamb mount
Minimum bracket-to-bracket width: 17.5 in.
Maximum bracket-to-bracket width*: 12 ft.
Operates at less than 35 dBA at 3ft.
roller 100
roller 100 can operate up to 100 ft2 of fabric.
Pocket size: 4.75 in. w x 5 in. h
Typical maximum size of fabric*: 100 ft2
Two-piece bracket designs for ceiling, wall, and jamb mount
Minimum bracket-to-bracket width: 24 in.
Maximum bracket-to-bracket width*: 10 ft.
Operates at less than 38 dBA at 3ft.


roller 150
Designed for tall and coupled shades, when the reduced speed of a roller 200CW is undesirable. Allows for coupling of up to 6 fabric panels.
Pocket size: 4.75 in. w x 5 in. h
Typical maximum size of fabric*: 150 ft2
Two-piece bracket designs for ceiling, wall, and jamb mount
Minimum bracket-to-bracket width: 24 in.
Maximum bracket-to-bracket width*: 10 ft.
Operates at less than 44 dBA at 3ft.
roller 200CW
Create a curtain wall (CW) with up to 6 shade panels, driven by a single drive, similar in size to a roller 100 electronic drive unit. Roller 200CW operates at 1 in. per second, 1/3 the speed of other rollers in this family.
Pocket size: 4.75 in. w x 5 in. h
Typical maximum size of fabric*: 200 ft2
Two-piece bracket designs for ceiling, wall, and jamb mount
Minimum bracket-to-bracket width: 24 in.
Maximum bracket-to-bracket width*: 15 ft.
Operates at less than 38 dBA at 3ft.

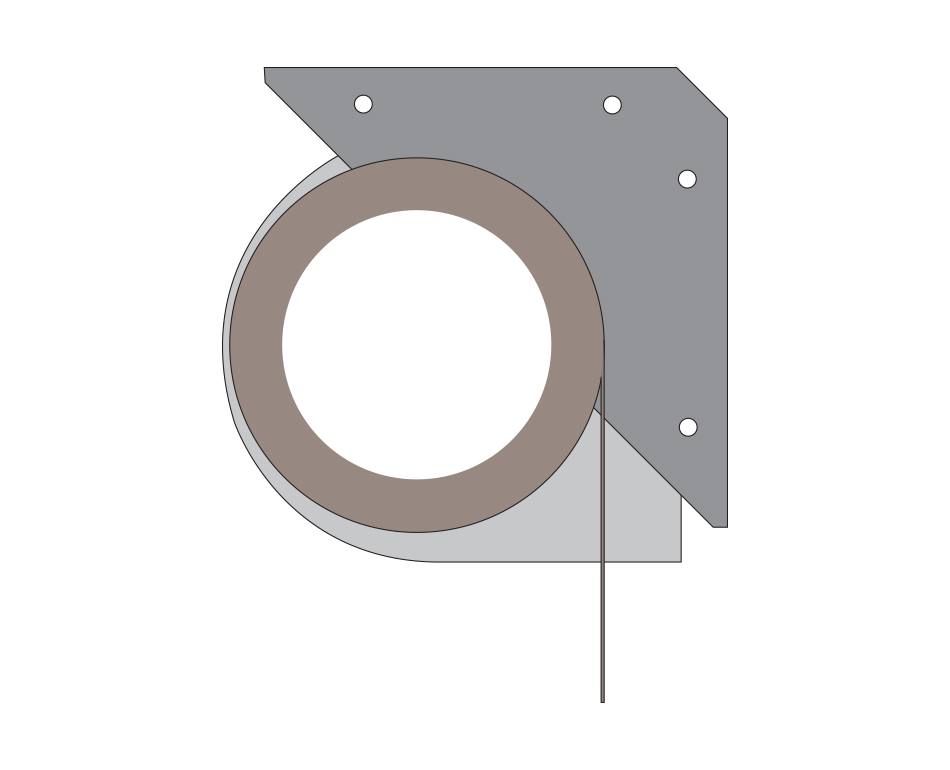

roller 225
Provides a heavy-duty bracket and higher torque to control up to 225 ft2 of fabric for much larger applications, such as atriums or window walls.
Pocket size: 7 in. w x 7 in. h
Typical maximum size of fabric*: 225 ft2
Heavy duty brackets for ceiling, wall, and jamb mount
Minimum bracket-to-bracket width: 31.75 in.
Maximum bracket-to-bracket width*: 15 ft.
Operates at less than 38 dBA at 3ft (914 mm).
*Larger shades may be available based on fabric selection. Contact customer service or use the SCT for actual shade dimensions based on fabric type.
Installation options for Lutron roller shades

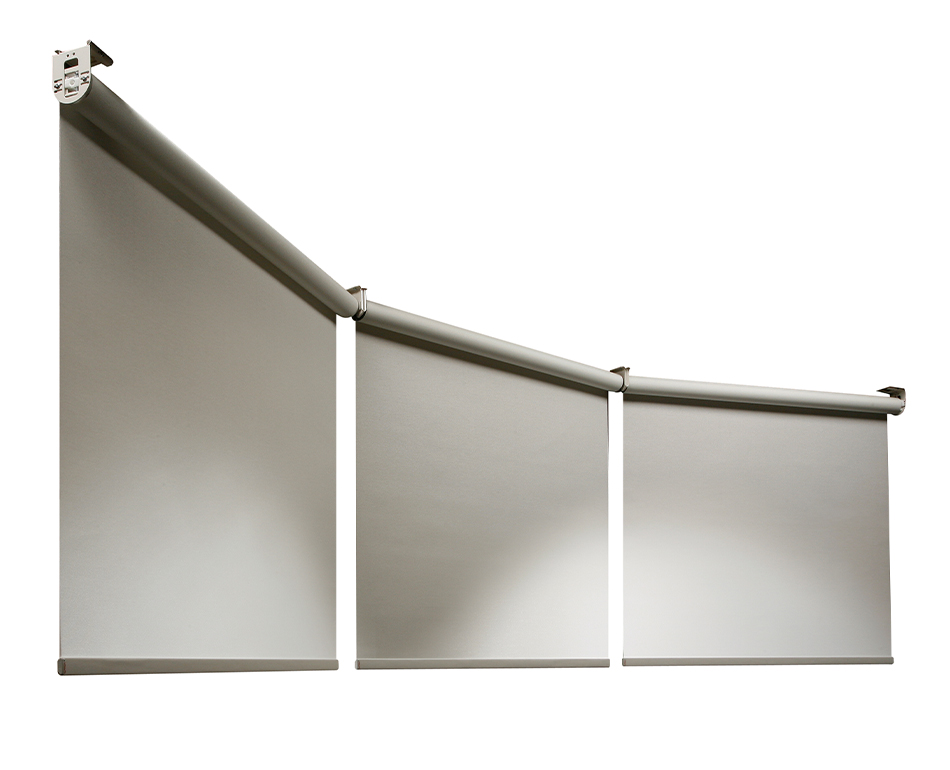

Angled Coupler
Economically address curved facades with the angled coupler from Lutron. This coupler removes the need for multiple shade drives in angled applications — resulting in significant cost reductions.

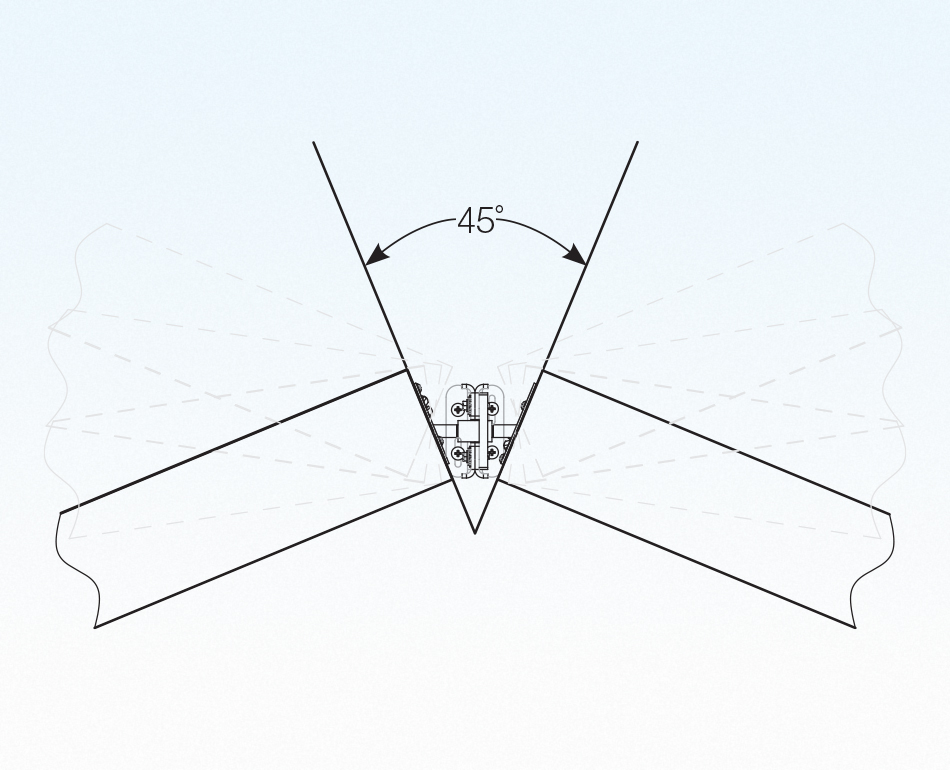

Shade angles not required to order; one size fits all angles, 0°-15° or 0°-45°. The 0°-15° model creates smaller light gaps, while the 0°-45° offers a wider range of installation angles.
Performance
- Operates up to three (3) coupled fabric panels using one (1) roller 100, roller 150 or roller 200CW drive
- Allows for angles up to 45° between coupled shades
(22.5° maximum each side) - Maintains precise bottom bar alignment across all joined shades
- Ultra-quiet, low drag coupler components

Installation
- Measuring template ensures precise and easy installation. Plastic angled coupler templates can be ordered through Customer Service:
0°-15° Narrow Angle Coupler Template (P/N 045-315)
0°-45° Wide Angle Coupler Template (P/N 045-318) - Offers “phase adjustment” which allows for bottom bars to be aligned after installation
- Minimum width
Drive side panel: 25.5 in
Non-drive side panel: 14 in - Ceiling and pocket-mount capable

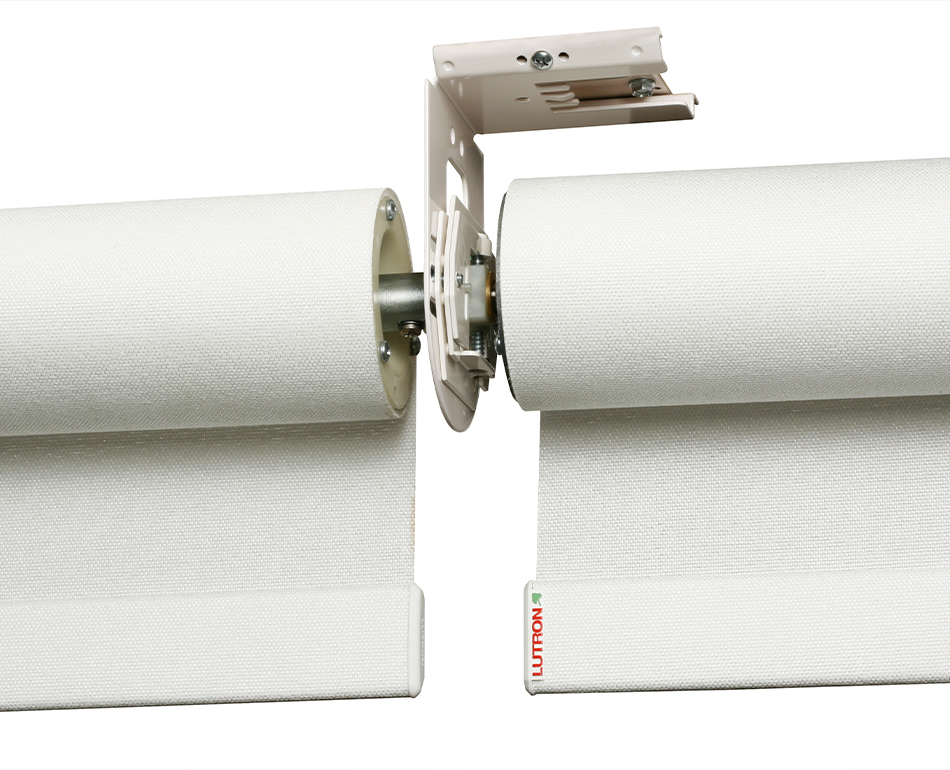

In-line Coupler
Installing one shade drive to operate multiple fabric panels
creates a cost-effective solution without sacrificing automation or daylight harvesting.
Performance
- Operates up to six (6) coupled fabric panels using one (1) roller 100, roller 150 or roller 200CW drive
- Maintains precise bottom bar alignment across all joined shades
- Ultra-quiet, low drag coupler components


Installation
- Assemble with any bracket configuration
- Offers “phase adjustment” which allows for bottom bars to be aligned after installation
- Simple Installation - no pins needed
- 1.5 in. minimum light gap between shade panels
- Minimum width
Shade containing drive: 25.5 in
Shades without drive: 14 in

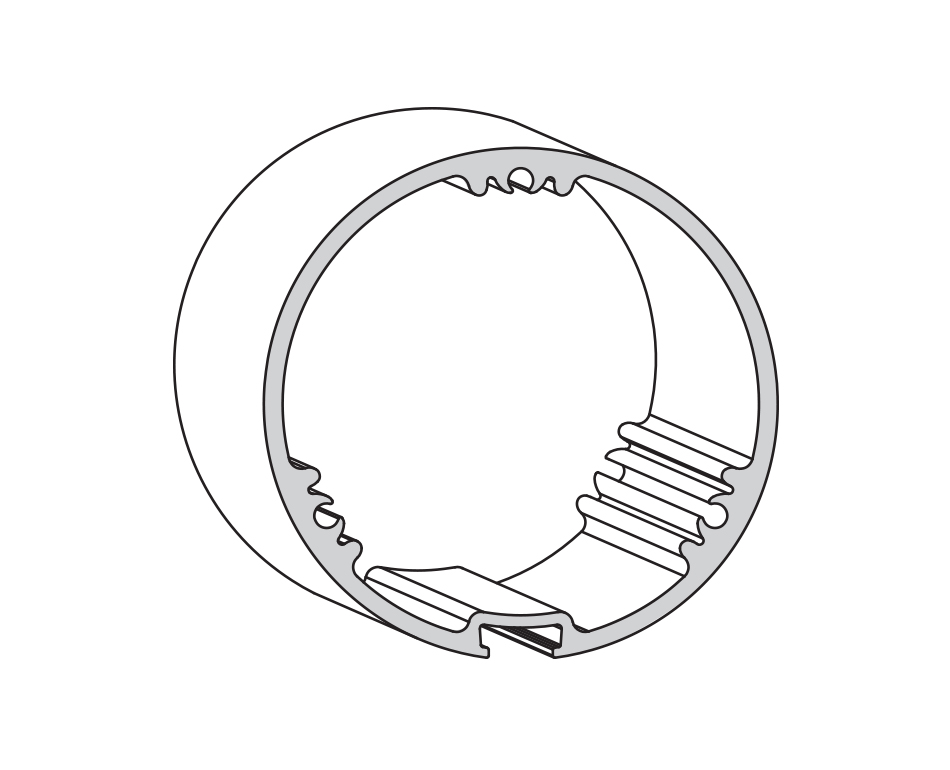

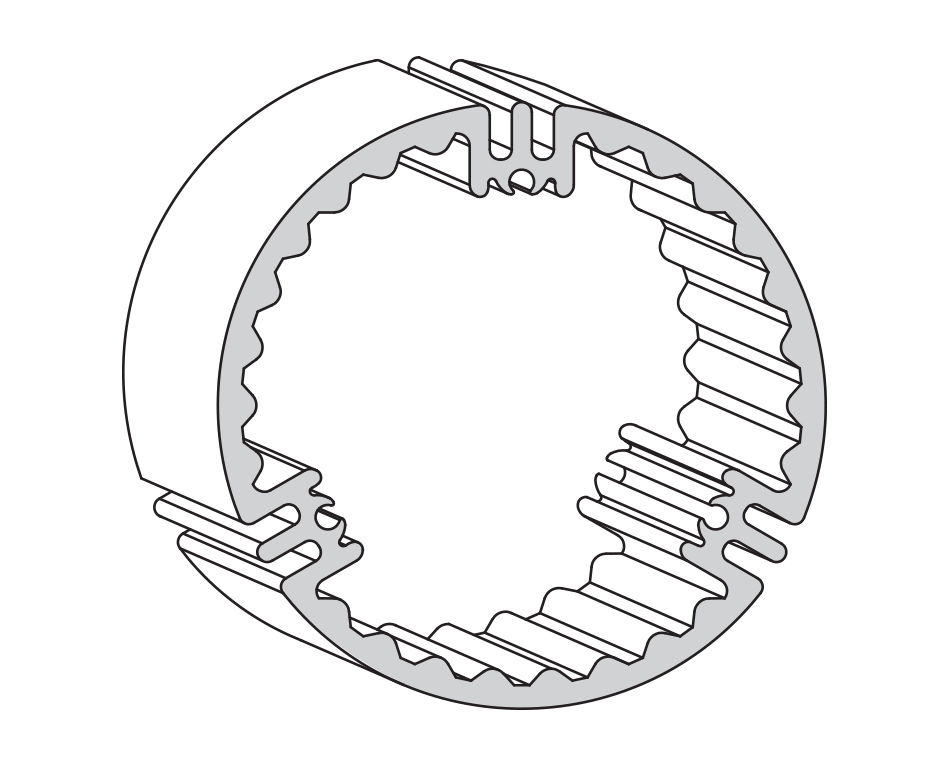

WIDR Tube

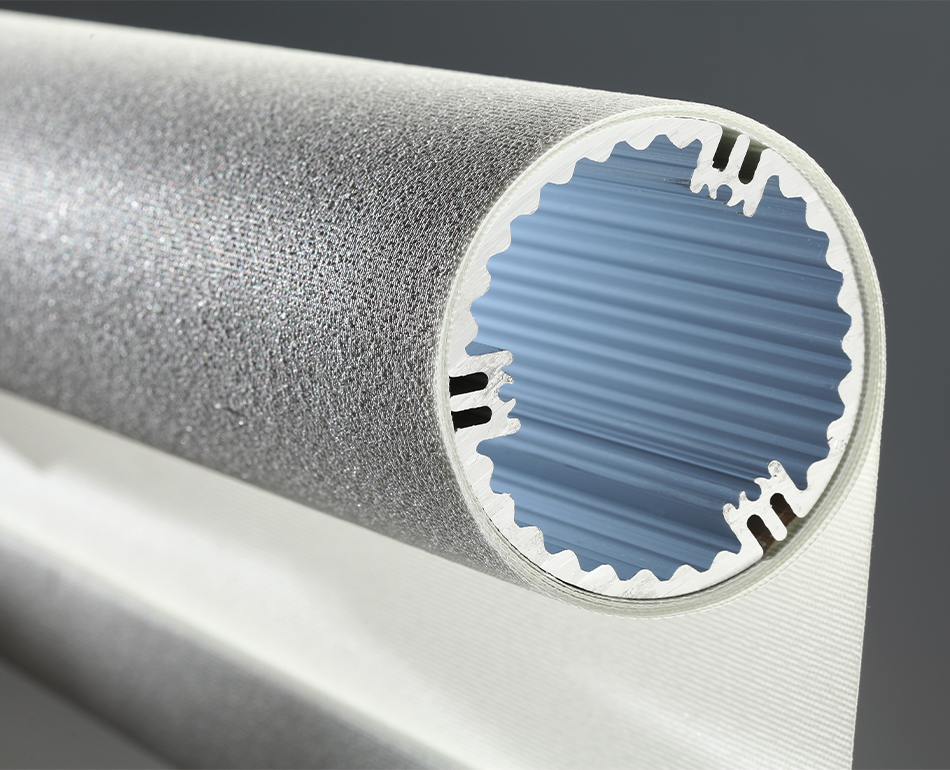

The WIDR (Width Integrated Deflection Reduction) tube option features an enhanced design with a larger and stronger cross-section. This improves shade aesthetics by minimizing deflection in wide windows of average height.
Performance
- For use with all roller 100, roller 150 and roller 200CW drives
- Decreases ripples on the fabric by reducing deflection in wide, single panel shade applications
- Allows for shades up to 180 in. wide and utilizes coupling systems for extra wide coupled shades
- In some applications, the WIDR tube can remove the need for multiple shade panels, eliminating their associated light gaps
- Maintains the quiet precision of Lutron electronic drive technology



Installation
Tube diameter: 3.0 in (standard roller 100: 2.5 in)
Standard pocket size: 4.75 in x 5.00 in
Typical shade size: 12 ft w x 8.33 ft h (about 100 ft2)
Minimum bracket-to-bracket width: 24 in
Maximum bracket-to-bracket width: 15 ft
Utilizes all roller 100 brackets and top treatments
The WIDR tube can also be used to structurally enhance
existing installations
