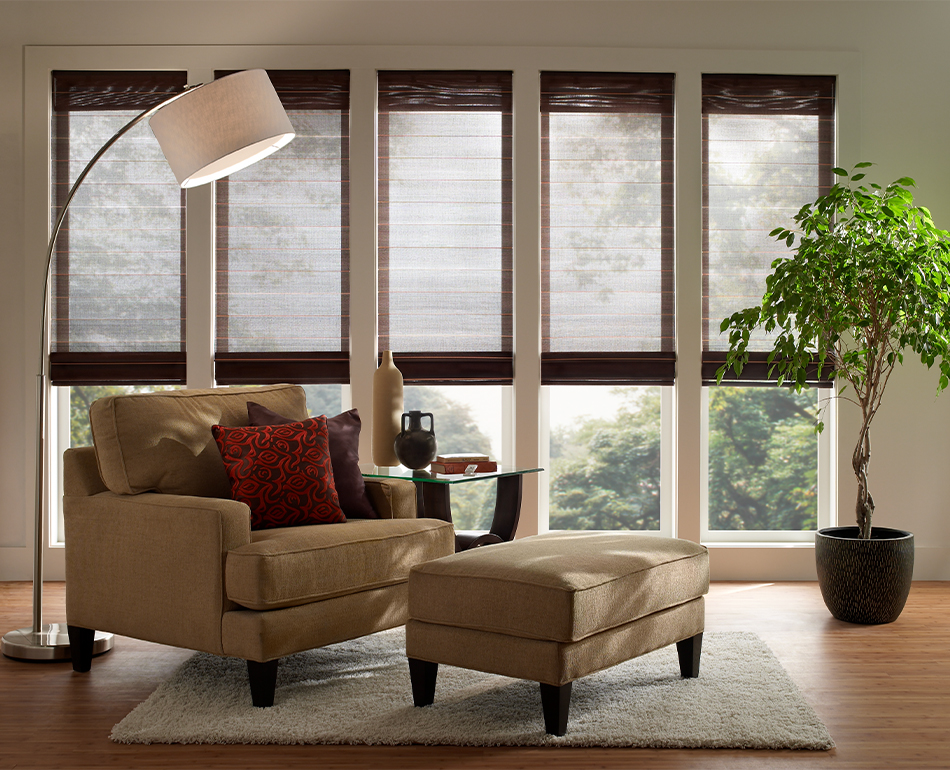

Roman Shades

Lutron offers 3 Configured Roman Kit options. Each option includes the components needed to have a window treatment workroom, fabricate a roman shade using Lutron drive technology.
Configured Roman Kit Options
Lutron offers 3 Configured Roman Kit options. Each option includes the components needed to have a window treatment workroom, fabricate a roman shade using Lutron drive technology.

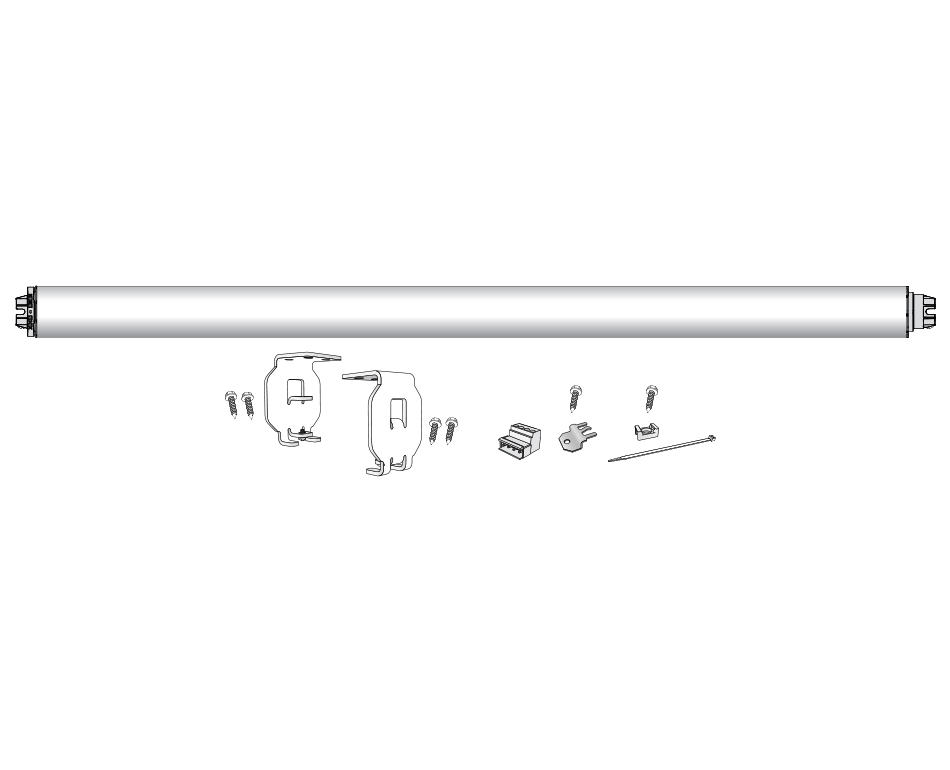

roller 64 kit
Tube size: 1.625 in. diameter
Headrail depth: 2.5" min
Minimum bracket to bracket width: 21.5 inches
Maximum bracket to bracket width: 109.5 inches
Maximum fabric panel weight: 11.7 lb

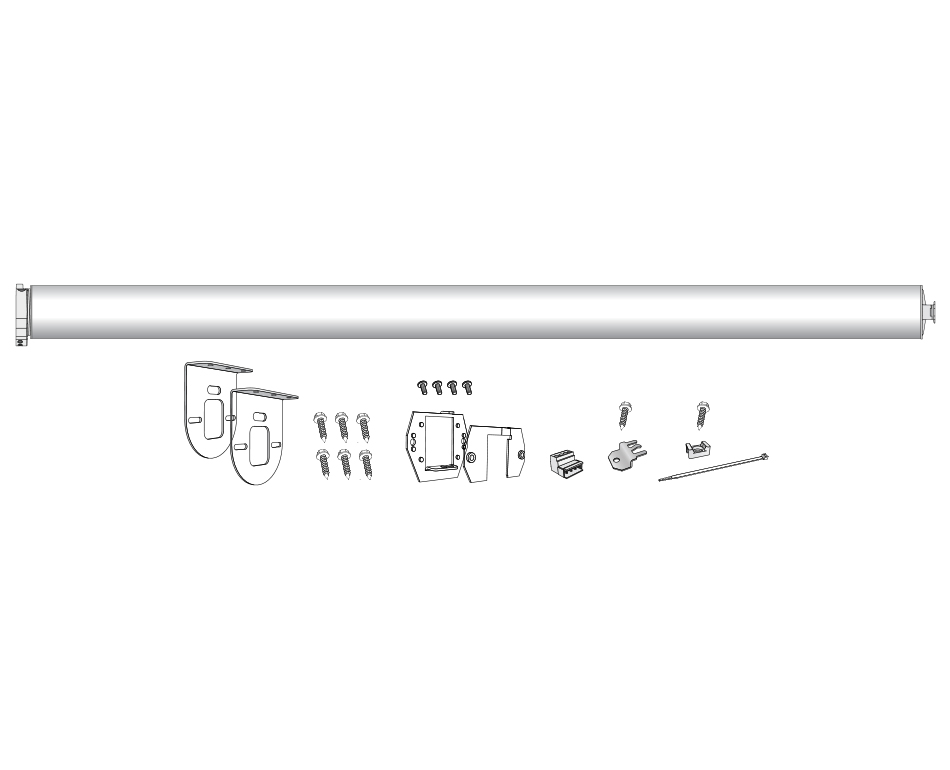

roller 100 kit
Tube size: 2.56 in. diameter
Headrail depth: 4.5" min
Minimum bracket to bracket width: 24 inches
Maximum bracket to bracket width: 145.25 inches
Maximum fabric panel weight: 17.9 lb


roller 150 kit
Tube size: 2.56 in. diameter
Headrail depth: 4.5" min
Minimum bracket to bracket width: 24 inches
Maximum bracket to bracket width: 145.5 inches
Maximum fabric panel weight: 23.5 lb
