Tensioned Shades

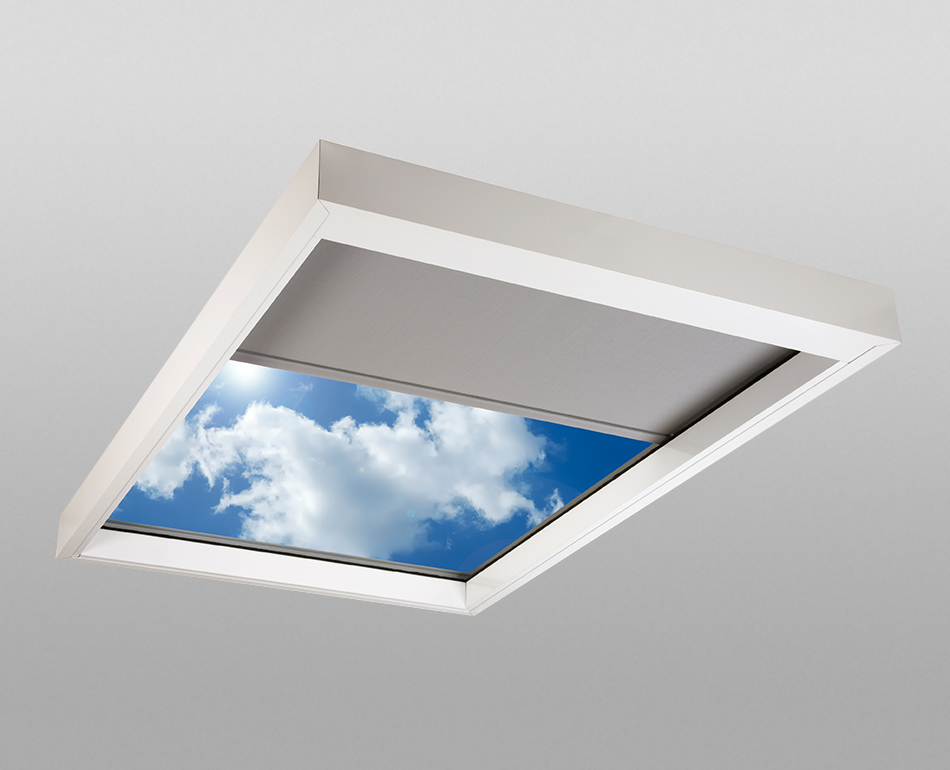

Tensioned shade

Tensioned shades provide solutions for skylights and angled windows. The innovative design from Lutron keeps fabric panels taut and parallel to windows with minimal sag at a variety of slopes. Lutron tensioned shades reduce light gaps around fabric, and maximize the view when opened by eliminating cable guides that are typical in skylight shades. The frame may be surface mounted, inside mounted, or recessed while still allowing easy access to update the fabric.

Mounting Options

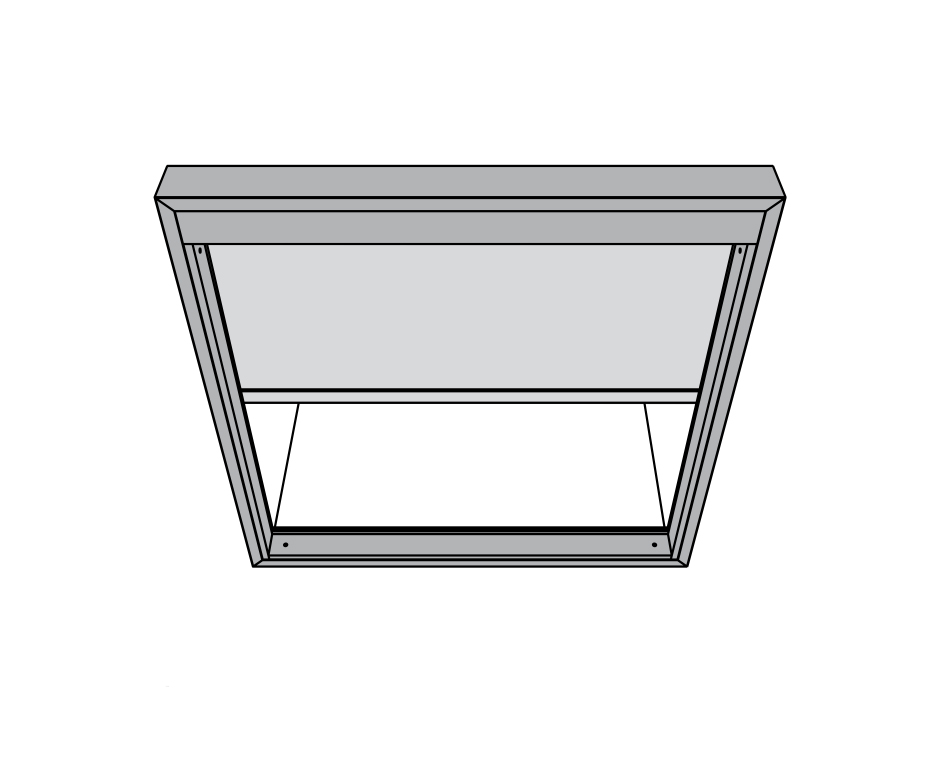

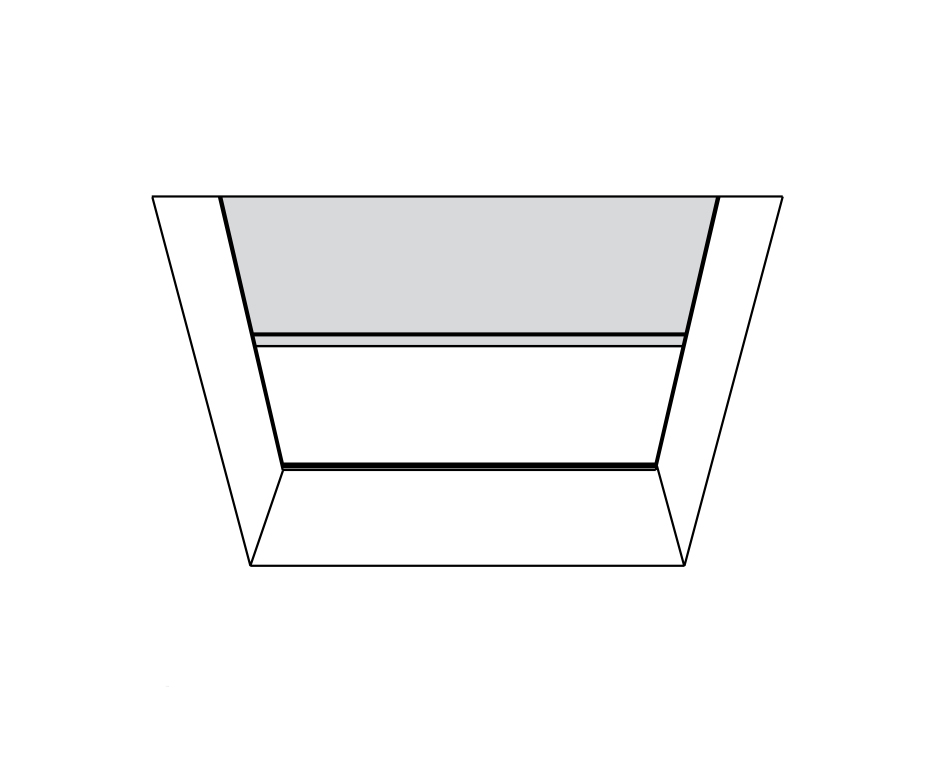

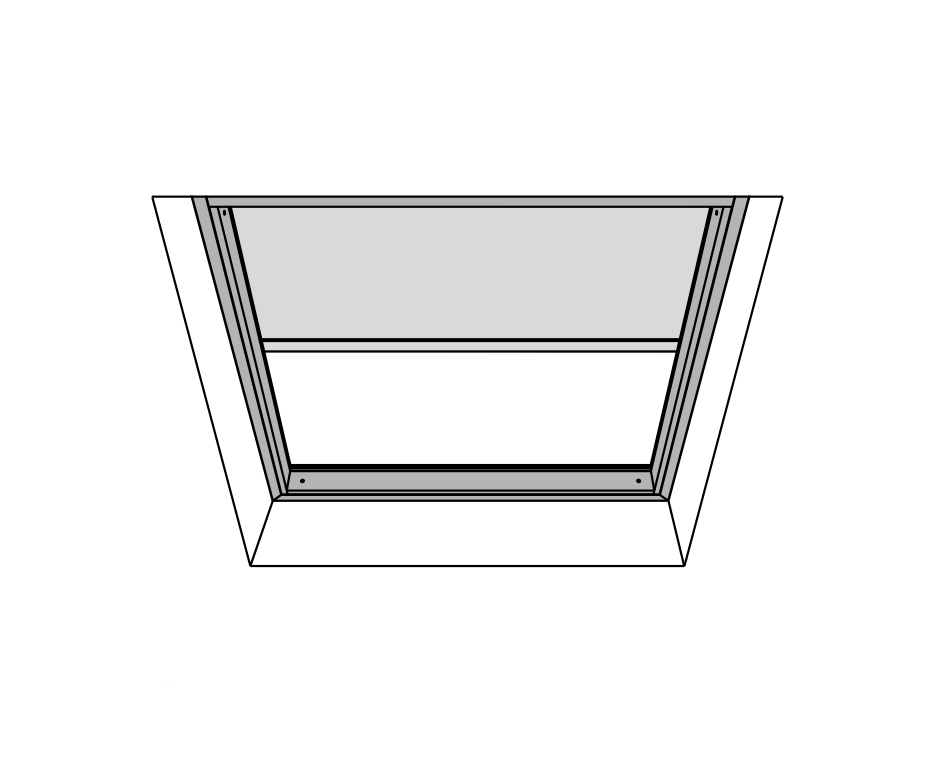

Lutron tensioned shades can be installed with surface, inside, or recessed mounts.

*Surface mount recommended for skylight applications only

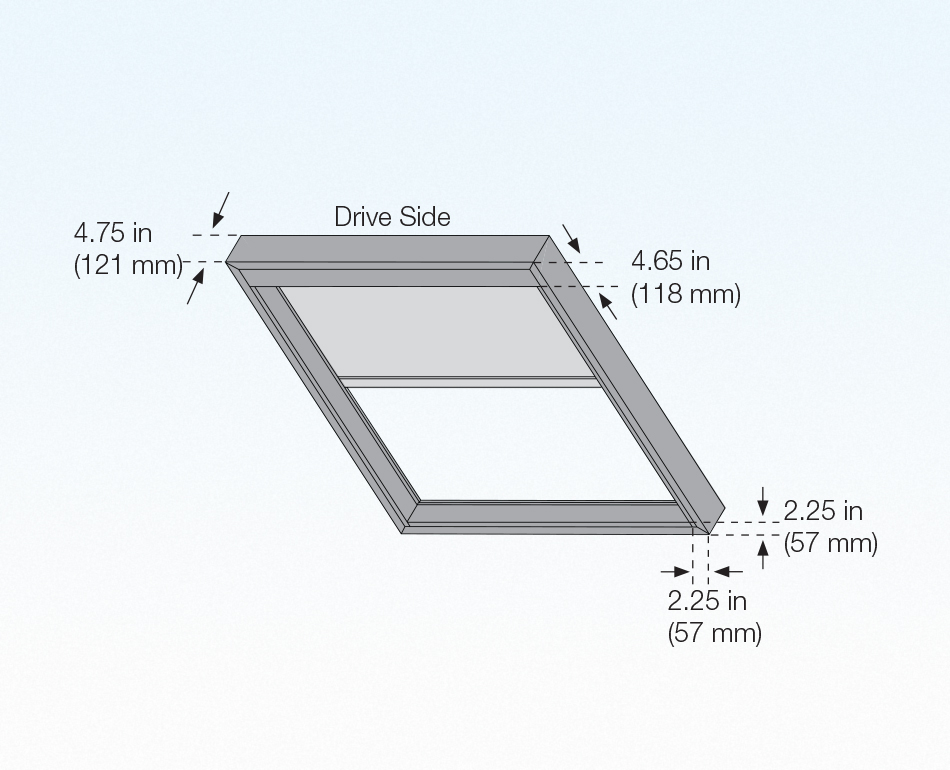

Frame specs

Frame Specifications

System is concealed within its frame. Frame thickness and depth are standard regardless of system size. Pre-assembled shipping available**. Available in white and silver.


** Shade sizes up to 30 ft2 (2.8 m2

Angles of Installations

Lutron tensioned shades allow for flexible installation at any angle between -135º and 135º with consistent aesthetic results. Shade can close from top to bottom, or from the bottom up, with fabric unrolling closest to the window.

Angles
System Params

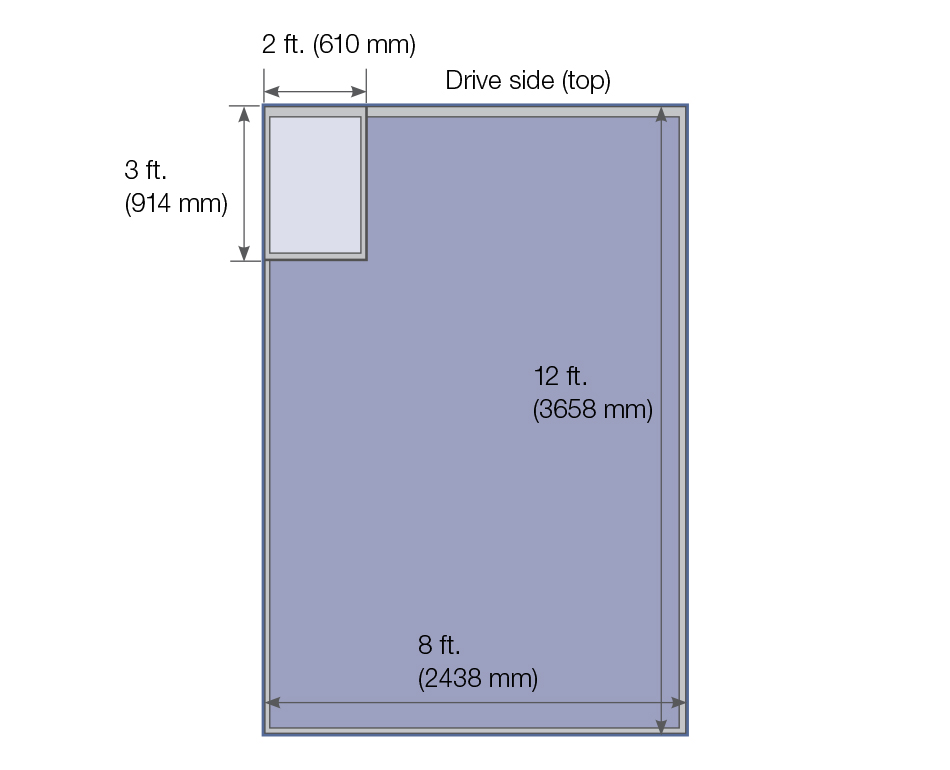

System Parameters

System contains frame and shade.

    2 ft w x 3 ft l (610 mm x 914 mm)

    8 ft w x 12 ft l (2438 mm x 3658 mm)

    Drive side: 4.65 in (118 mm)
    Non-drive sides: 2.25 in (57 mm)

    Note: Tensioned shade dimension limitations are a function of fabric selection and application angle. Please consult the SCT or customer service for details.

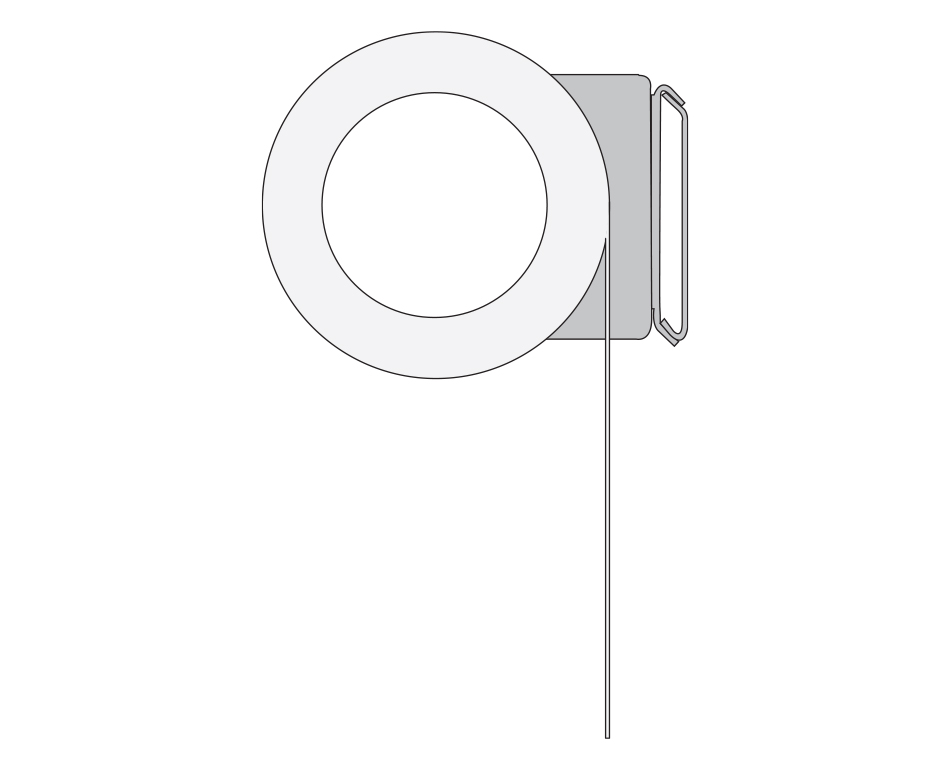

    Drive Options

    roller 100

    Tensioned shades utilize a roller 100 electronic drive unit. Tensioned shade dimension limitations are a function of fabric selection and application angle. Please consult the SCT or customer service for details.

      Tube size: 2.56 in diameter
      Pocket size: 4.75 in w x 5 in h
      Typical maximum size of fabric*: 100 ft2

      Minimum bracket-to-bracket width: 24 in
      Maximum bracket-to-bracket width: 8 ft
